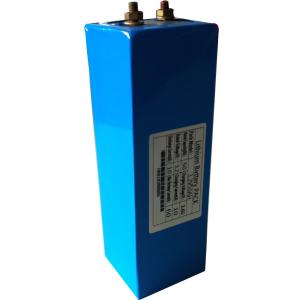

150AH 3.2V Prismatic LFP Cell 4000+ Cycle Life Energy Storage Special Use

HECO NEW ENERGY CO., LIMITED
Contact Now

150AH 3.2V Prismatic LFP Cell 4000+ Cycle Life Energy Storage Special Use

  • 1
  • 2

Place of Origin : China

Brand Name : HECO

Certification : CE,RoHS ,UN38.3, ISO

Model Number : IFP27122450-150

MOQ : 100 Pcs

Price : Negotiable

Packaging Details : 10 pcs/carton, carton size: 570*240*230mm

Delivery Time : Sample: within 15 days;bulk order:25~60 days, based on the order quantity

Payment Terms : T/T (30% advance payment, 70% balance payment to deliver the goods);Western Union, Paypal

Supply Ability : 20000 packs/ month

Nominal Voltage : 3.2V

Nominal capacity : 150Ah

Battery dimensions : 27*122*450mm

Battery weight : 3.3KG

Feature : Easy for battery assembly and maintenance

PCB Intergratd : No

Contact Now

Overview:
From HECO point of view, prismatic cells of bolt connecting type is very suitable to make energy storage battery packs. But most prismatic cells in market are designed to make power battery packs which need laser welding. So HECO developped prismatic cells of bolt connecting type specially for energy storage. 3 models are available. 25AH, 100AH and 150AH can be easily connected in series and in parallel to get the popular needed battery pack sizes such as 12V 100AH, 12V 200AH, 48V 100AH, 48V 150AH and 48V 200AH, etc.


Features:
1- Customized for the size of the rack installation, thinner and longer, cell energy density of 160Wh /kg, 20% higher than traditional cells, system energy density increased by more than 30%
2- Better heat dissipation performance: 70% higher heat dissipation efficiency compared with peers
3- Extra long cycle life: more than 4000 cycles @ 80% DOD @ 25℃

Specifications:

Item

Description

Nominal Voltage

3.2V

Rated Capacity

150Ah

Dimensions

27*122*450mm

Weight 3.3kg

Internal Resistance

≤100mΩ

Charging Mode

CC/CV

Standard Charging Current

0.2C

Max. constant charging current 0.5C
Standard discharging current 0.5C
Max. constant discharging current 1C

Cycle Life

4000 Cycles @ 100%DOD

Charge Temperature

0-45 ℃

Discharge Temperature

-20-60 ℃

The data on the table is only for reference

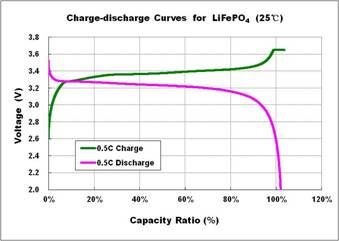

1. Charge-discharge Curves for LiFePO4 battery
150AH 3.2V Prismatic LFP Cell 4000+ Cycle Life Energy Storage Special Use

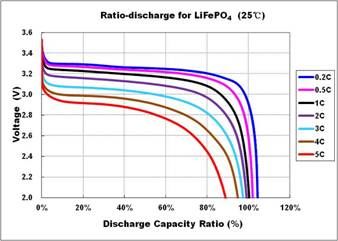

2. Ratio-discharge for LiFePO4 battery
150AH 3.2V Prismatic LFP Cell 4000+ Cycle Life Energy Storage Special Use

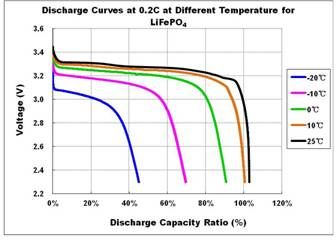

3. Discharge Curves at 0.2C at different temperature for LiFePO4 battery
150AH 3.2V Prismatic LFP Cell 4000+ Cycle Life Energy Storage Special Use

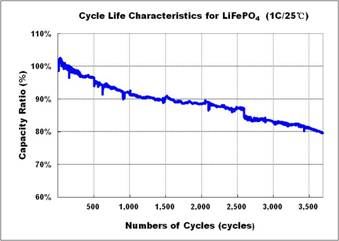

4. Cycle life Characterristics for LiFePO4 battery
150AH 3.2V Prismatic LFP Cell 4000+ Cycle Life Energy Storage Special Use

Company advantages:

1. Advanced lifepo4 battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.

Tag: 150ah lifepo4 battery, 150ah prismatic cell, 150ah lifepo4 cell
