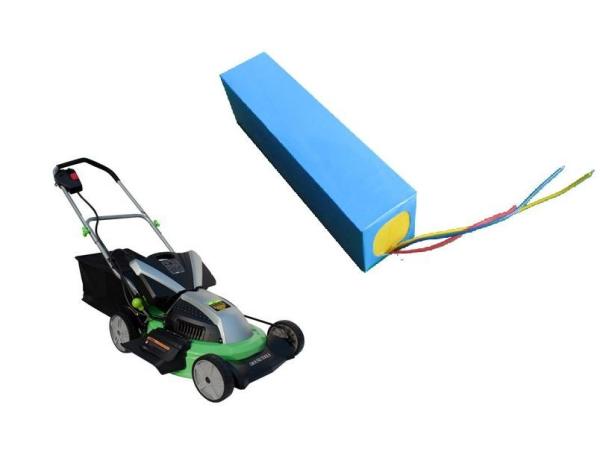

36V 16AH LiFePO4 Power Battery For electric Mower , Compact Size & Light Weight
Quick Detail:
1. Long cycle life: 1200+ times, 70% capacity remained after 1200 cycles
2. Low self-discharge rate: less than 3%
3. Shape free: any shape can be designed, customized made
4. High safety & eco-friendly
5.Small size and light weight
Description:
36V 16ah high energy density lifepo4 battery packs for electric mower
Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.
Applications:
electric bike, electric wheelchair, electric scooter, electric motorcycle, golf cart, electric robot, vacuum cleaner, electric mower, wind/solar energy storage ...
Specifications:
| Items | Characteristic parameters | Remark |
| Standard voltage | 36V | |
| Standard capacity | 16Ah | 0.2C5A discharge |
| Resistance | ＜110mΩ | AC Imp |
| Standard charge current | 0.2C (2A) | |
| Max charge current | 0.5C (5A) | |
| Rated discharge current | 30A | |
| Peak discharge current | 60A | |
| Over-current protection | YES | |
| Dimensions | 465*72*53mm | |
| Weight | ＜2.5Kg | |
| Charge/discharge port |

| |
| Charing mode(CC/CV) | standard | 0.2C5A×6 hrs.(reference value) | |
| fast | 0.5C5A×2.5 hrs.(reference value) | |
| Working temperature range | charge | 0℃~+45℃ | |
| discharge | -20℃~+55℃ | |
| Storage Temperature Range | -40℃~+40℃ | |
| Storage environment humidity | 5%～90% RH | |
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Tag: 36V Lifepo4 battery packs, 36V electric mower lithium batteries, 36V lithium power battery
