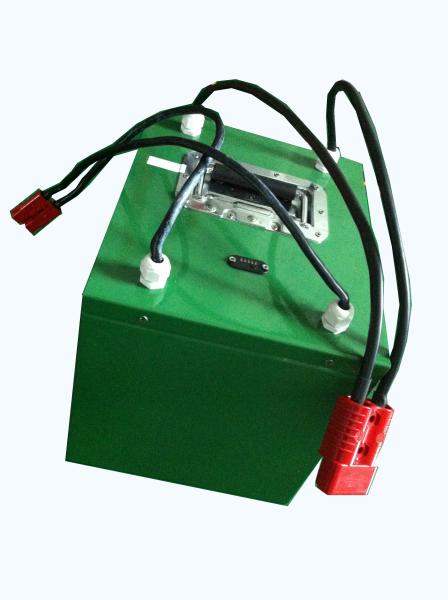

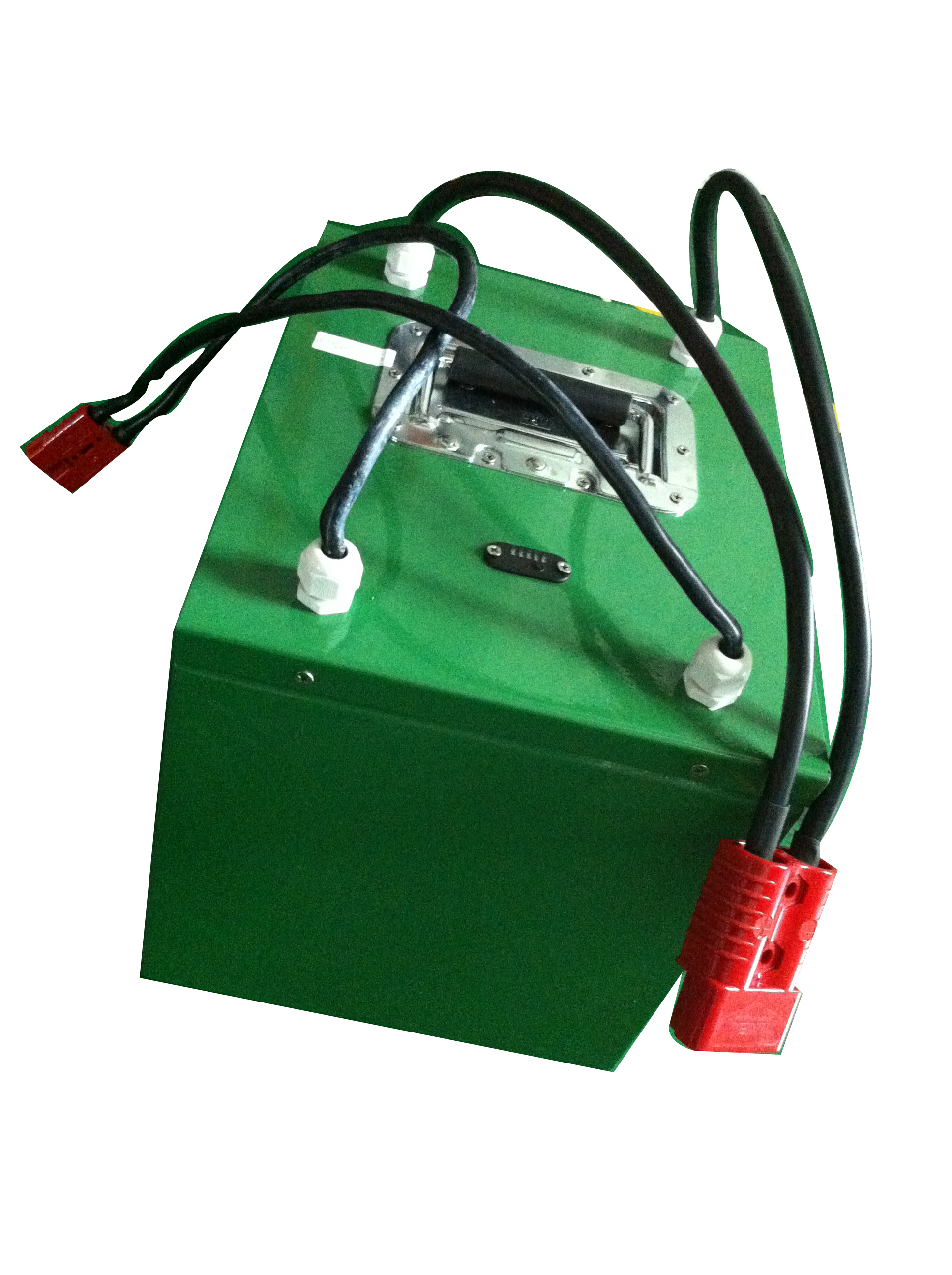

Safety LiFePO4 Battery Power Battery
Quick Detail:
1. Long cycle life: 1200+ times, 70% capacity remained after 1200 cycles
2. Low self-discharge rate: less than 5%
3. Shape free: any shape can be designed, customized made
4. High safety & eco-friendly
5.Compact and Lightweight
Description:
High power polymer Lithium ion battery for electric mower (72V 40Ah)
Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
LiFePO4 battery replacing Lead acid battery is an inevitable trend.
Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.
Applications:
electric bike, electric wheelchair, electric scooter, electric motorcycle, golf cart, electric robot, vacuum cleaner, electric mower, wind/solar energy storage ...
Specifications:
| Items | Characteristic parameters | Remark |
| Standard voltage | 72V | |
| Standard capacity | 40Ah | |
| Resistance | ＜100mΩ | AC Imp |
| Discharge voltage | 55.2V~87.6V | |
| Standard charge current | 8A | |
| Max charge current | 20A | |
| Standard discharge current | 40A | |
| Max discharge current | 100A | |
| Over-current protection current | Customized design | |
| Dimensions | 360* 350*190*mm | |
| Weight | About 30Kg | |
| Charge/discharge port |     | |
| Charing mode(CC/CV) | standard | 0.2C×6 hrs.(reference value) | |
| fast | 0.5C×3 hrs.(reference value) | |
| Working temperature range | charge | 0℃~+45℃ | |
| discharge | -20℃~+55℃ | |
| Storage Temperature Range | -40℃~+40℃ | |
| Storage environment humidity | 5%～90% RH | |
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Company advantages:
1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.
Tag: 72V electric mower battery, polymer lithium ion battery, lithium batteries for mower
